- General Information
- Manufacturer
- Samsung
- Manufacturer Website Address
- http://www.samsung.com/au
- Brand Name
- Samsung
- Product Line
- SyncMaster
- Marketing Information

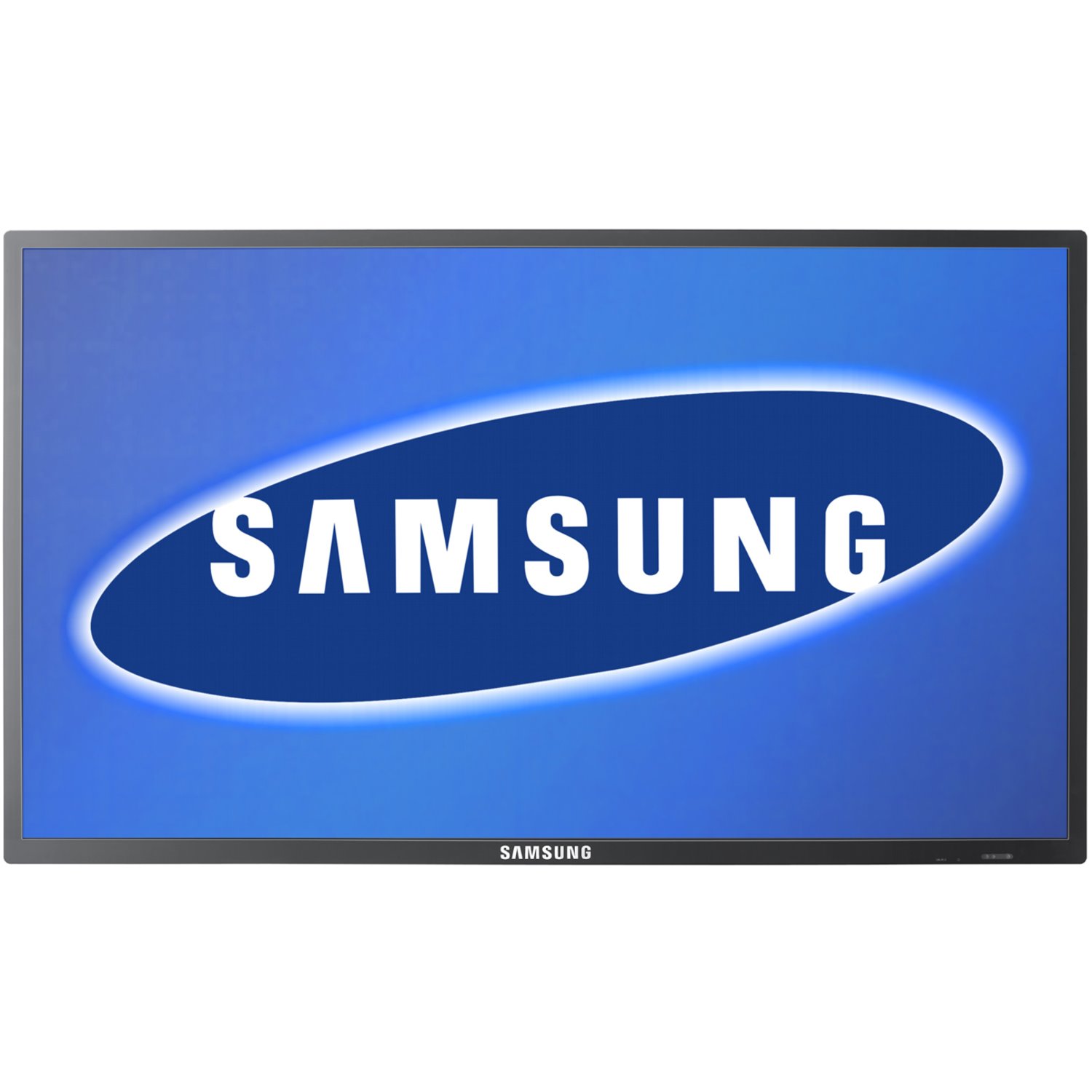

The Samsung 55" LFD is commercial-grade display, guarantee exceptional readability and reliability with professional DID panel. Designed to provide a powerful visual presence , ultra-high brightness ensures readability in any light conditions, and with Full HD resolution. 550DX guarantee information is presented to perfection 24 hours a day, 7 days a week for the duration of their extended lifetime. The RJ45 LAN MDC feature offer the powerful remote controlling with the present RS232C daisy chain MDC. p to 100 LFDs are able to connected as Digital Loop out of HDMI, DVI and Display port with equal picture quality of full HD guaranteed. Simple video matrix installation is possible with embedded video wall feature, supporting max. 10 x 10.
- Product Type
- Digital Signage Display
- Technical Information
- Features
- Lamp Error Detection
- Brightness Sensor
- Temperature Sensor
- Anti-retention
- Picture in Picture
- Plug and Play
- Pivot Display
- Button Lock
- Smart Scheduling
- Video Wall
- Display & Graphics
- Viewable Screen Size
- 55"
- Display Screen Type
- LCD
- Display Resolution
- 1920 x 1080
- Response Time
- 8 ms
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Audio
- Number of Speakers
- 2
- Speakers
- Yes
- Video
- Standard Refresh Rate
- 120 Hz
- Dynamic Contrast Ratio
- 20,000:1
- Native Contrast Ratio
- 4,000:1
- Brightness
- 700 cd/m²
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Ethernet
- Interfaces/Ports
- DVI
- Yes
- VGA
- Yes
- HDMI
- Yes
- Composite Video
- Yes
- DisplayPort
- Yes
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Serial
- Yes
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 74.2 cm
- Width
- 126.4 cm
- Depth
- 13.6 cm
- Weight (Approximate)
- 35.50 kg
- Miscellaneous
- Additional Information
- 0.21 x 0.63mm Pixel Pitch Panel
- 1209.6 x 680.4 mm Active Display Area
- Display Colors: 8 bit - 16.7 million
- Colour Gamut: 72%
- Power Type: Internal
- Power Consumption (On Mode): 390 Watts (Max.) / 353 Watts (Typ.)
- Power Consumption(Sleep Mode): Under 2 Watts
- Power Consumption (Off Mode): Under 1 Watts
- Certifications & Standards
Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- TUV EN60950-1
- NEMKO EN60950-1
- KC K60950-1
- CCC GB 4943-2001
- PSB IEC60950-1
- GOST IEC60950-1, EN55022
- SIQ IEC60950-1, EN55022
- PCBC IEC60590-1, EN55022
- NOM NOM-019-SCFI-1993
- IRAM IEC60950-1
- SASO IEC60950-1
EMC:
- FCC part 15, Subpart B Class
- BCE EN55022, EN55024
- VCCI V-3(CISpR22)
- KCC KN22, KN24
- BSMI CNS13438(CISpR22)
- C-Tick AS/NZS3548(CISpR22)
- CCC GB 9254-2008, GB 17625.1-2003
- Energy Star
- Yes
- Environmentally Friendly
- Yes
